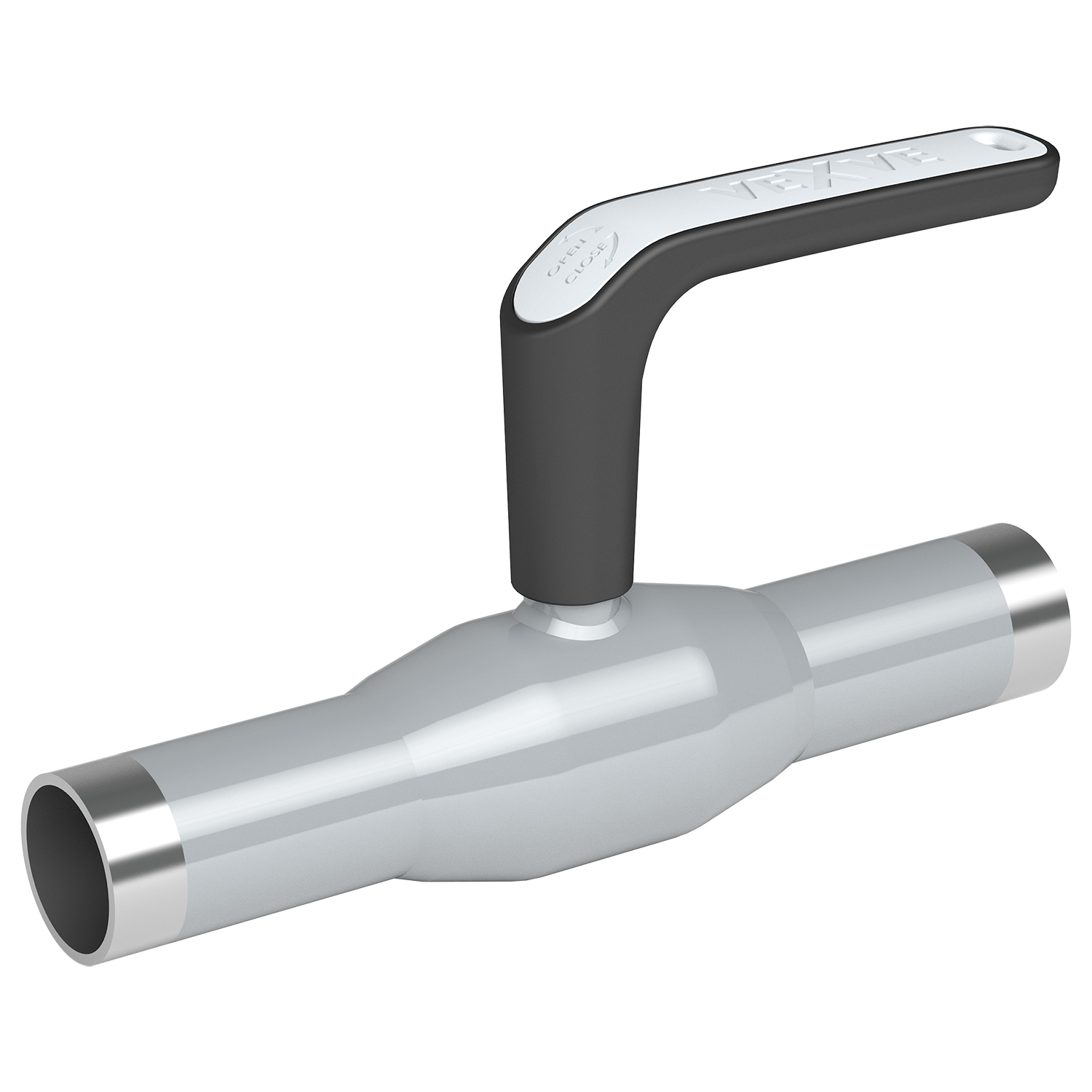

KÄHLER Ball Valve WE/WE DN015 PN40 rb St.Steel H X
Please register to order this product directly in our webshop.
The order is also possible by phone +49 2174 7848-0.
The order is also possible by phone +49 2174 7848-0.
Product number: VX04ECA9H01AA9
Product information „KÄHLER Ball Valve WE/WE DN015 PN40 rb St.Steel H X“
Shut-off ball valve X-Series
welding ends
fully-welded construction
reduced bore
Body material: Stainless Steel, AISI316L (1.4404)
Ball material: Stainless steel, AISI316L (1.4404)
Spring-loaded ball sealing made of reinforced PTFE
Stem: Stainless steel AISI316L (1.4404)
Steam sealing: FPM
Type Vexve 230015X
Operation conditions: -20°C - +200°C
incl. composite handle
welding ends
fully-welded construction
reduced bore
Body material: Stainless Steel, AISI316L (1.4404)
Ball material: Stainless steel, AISI316L (1.4404)
Spring-loaded ball sealing made of reinforced PTFE
Stem: Stainless steel AISI316L (1.4404)
Steam sealing: FPM
Type Vexve 230015X
Operation conditions: -20°C - +200°C
incl. composite handle
Product type: | Ball valve |
---|---|
Body material: | Stainless steel |
Bore type: | Reduced bore |
Diameter Nominal (DN): | 25 |
Pressure class (PN): | 40 |
Connection: | Welding end / Welding end |
Operation: | Handle |
