Electric Actuators
We offer high-quality electric actuators from renowned manufacturers,
which can be used for a wide range of applications.
From compact solutions to high-performance systems, they enable
seamless control of valves across a wide variety of industries and applications.
Our electric actuators set the standard in precision, reliability, safety and ease of maintenance.
They are characterised by a well-thought-out design, robust construction and durable materials.
We stock a wide range of different models – from compact rotary actuators to high-performance quarter-turn actuators,
each with clearly definable angles of rotation and torques.
Integrated sensors, temperature-resistant materials and water-resistant housings are standard features.
Energy efficiency, smooth start/stop behaviour, precise positioning speed and robust sealing solutions enhance operational reliability and service life.
Furthermore, thanks to their modular design and extensive range of retrofittable accessories, our electric actuators can be individually configured,
enabling tailor-made integration even into complex systems.
Optional parameters include, for example, designs and materials, actuator configurations, operating modes, rotation angle ranges, end-position settings and sensors.
Advanced options include high-precision initiators, redundant power supply and certified protection classes for demanding applications.
Our electric actuators are compatible with the industrial valves we supply.
This ensures seamless integration and consistent operating characteristics from a single source
– from the actuator and valve right through to complete testing and commissioning support.
Applications include, for example, industry, water and wastewater technology, as well as heating and air conditioning systems.
The actuators are particularly well suited to precise positioning and control tasks, reliable remote or local control,
as well as applications with high demands on service life, ease of maintenance and operational reliability.
You can rely on our solutions when it comes to safe, efficient and durable valve control.
Applications
electric actuators
- constructed for a wide range of applications, particularly suitable for demanding valve control in heating and cooling systems, energy and utility infrastructure, plant and mechanical engineering, the oil and gas industry, the chemical and petrochemical industries, water and wastewater technology, pharmaceuticals and biotechnology, power stations, hygiene and sterilisation technology, or in automation and control systems (remote control, remote maintenance)
- suitable for the precise control and regulation of industrial valves
- robust and reliable even under demanding conditions
- ambient temperature -30°C to +70°C (depending on model)
- operating conditions as per data sheet
Construction
electric actuators
- robust, compact, low-maintenance design
- modular construction
- high-quality corrosion protection
- highest protection rating up to IP6
- precise high-performance gearbox with three-phase, single-phase or DC motor for control, regulation or positioning operation
- incl. handwheel for manual operation (emergency operation)
- reliable remote or local control (stand-alone or fieldbus/industrial ethernet-integration)
(depending on model) - position and torque detection with adjustable torque cut-off
(depending on model) - cable entries in various designs
- valve connections to DIN and ISO standards
- mechanical position indicator (depending on model)
- functional safety: use up to SIL 2 possible in selected configuration
- replaceable coupling for connecting the valve spindle
Versions
electric actuators
- Motors:
rotary, AC or DC motor - Types of movement:
rotary or quarter-turn drive - Operating modes:
control mode (open-close/class A)
positioning mode (inching/class B)
regulation mode (modulating mode/class C) - Torque range:
from 10 to 32,000 Nm
(depending on model) - Quarter-turn angle:
up to 90°, 180°,
or more on request - Position sensors:
limit switches or encoders - Operating voltage:
between 12 V DC and 400 V AC
(depending on model)
Types and features electric actuators
electric rotary actuators series SA
- suitable for most industrial applications
- robust, modular, low-maintenance design using high-quality materials
- precise, reliable, energy-efficient
- exceptionally durable thanks to high-quality corrosion protection and the highest protection rating (IP68)
- suitable for control, regulation and positioning applications (depending on model)
- torque range: from 10 to 32,000 Nm
- output speeds 4 rpm – 180 rpm
- actuation times to customer specification
- particularly safe thanks to integrated position and torque detection (digital on AC type) as well as magnetic position and torque transducers and torque cut-off adjustable separately for both directions
- mechanical position indicator
- can be combined with various actuator control systems, ranging from simple open-close control to microcontroller-controlled versions with operational monitoring or a fieldbus interface
- wide temperature range
- handwheel for manual operation (emergency operation)
- quick installation thanks to ISO 5211 valve connection and interchangeable plug-in coupling
- electrical connection via circular plug connectors (alternatively terminals)
- cable entries in various designs
- intermediate position switch
- position transmitter
- tandem switch
- functional safety – use up to SIL 2 possible in selected configurations, in combination with AC 01.2 SIL actuator controller up to SIL 3
Data sheet / Information / Downloads
electric quarter-turn actuators series PSQ
- suitable for most industrial applications
- compact, robust and low-maintenance
- precise, reliable, energy-efficient
- long service life thanks to high-quality corrosion protection and IP67 (standard) or IP68 protection rating (optional)
- low weight thanks to high-quality aluminium alloys
- suitable for control and regulation applications
- torque range: from 50 to 3000 Nm
- for 90°, 180° or other angles, can even be configured for continuous rotation on request
- maintenance-free planetary differential gear
- reliable operation thanks to integrated position and torque sensing, as well as simple torque limiting in both directions – mechanically infinitely adjustable between 50 and 100% (depending on model)
- configurable via optional on-site control or USB interface (depending on model)
- incl. power failure protection
- diagnostic and monitoring function (depending on model)
- precise positioning thanks to synchronous or brake motors with no overshoot
- concealed mechanical limit stops, adjustable within a range of +/- 5 degrees
- mechanical position indicator visible from a distance
- convenient manual operation without disengaging (emergency operation)
- no need to switch from motor to manual operation – the handwheel remains stationary during motor operation but is always ready for use
- quick installation thanks to ISO 5211 valve connection and replaceable metal plug-in coupling for the valve spindle
- all standard supply voltages: single-phase, three-phase and DC
- extensive range of retrofittable accessories
electric quarter-turn actuators series J4C
- suitable for many industrial applications
- compact, robust, low-maintenance
- precise, reliable and versatile
- durable thanks to high-quality corrosion protection and an IP67 rating
- suitable for control and regulation applications
- torque range: from 20 to 300 Nm
- reliable operation thanks to integrated position and torque sensing, electronic torque limiting and adjustable end positions with end-position feedback
- large angles: up to 340° possible
- brushless DC motor
- modern, innovative electronics including a microcontroller with proprietary software
- quick installation thanks to ISO 5211 valve connection and interchangeable plug-in coupling
- easily accessible, switchable manual override directly on the actuator
- highly visible position indicator
- position controller
- automatic heating
- LED status indicator
- numerous additional options available
- convenient electrical connection without opening the housing via plugs to DIN standard
- flexible voltage range with automatic voltage detection
Data sheet / Information / Downloads
electric quarter-turn actuators series PSQ
- suitable for most industrial applications
- compact, robust and low-maintenance
- precise, reliable, energy-efficient
- long service life thanks to high-quality corrosion protection and IP67 (standard) or IP68 protection rating (optional)
- low weight thanks to high-quality aluminium alloys
- suitable for control and regulation applications
- torque range: from 50 to 3000 Nm
- for 90°, 180° or other angles, can even be configured for continuous rotation on request
- maintenance-free planetary differential gear
- reliable operation thanks to integrated position and torque sensing, as well as simple torque limiting in both directions – mechanically infinitely adjustable between 50 and 100% (depending on model)
- configurable via optional on-site control or USB interface (depending on model)
- incl. power failure protection
- diagnostic and monitoring function (depending on model)
- precise positioning thanks to synchronous or brake motors with no overshoot
- concealed mechanical limit stops, adjustable within a range of +/- 5 degrees
- mechanical position indicator visible from a distance
- convenient manual operation without disengaging (emergency operation)
- no need to switch from motor to manual operation – the handwheel remains stationary during motor operation but is always ready for use
- quick installation thanks to ISO 5211 valve connection and replaceable metal plug-in coupling for the valve spindle
- all standard supply voltages: single-phase, three-phase and DC
- extensive range of retrofittable accessories
electric quarter-turn actuators series J4C
- suitable for many industrial applications
- compact, robust, low-maintenance
- precise, reliable and versatile
- durable thanks to high-quality corrosion protection and an IP67 rating
- suitable for control and regulation applications
- torque range: from 20 to 300 Nm
- reliable operation thanks to integrated position and torque sensing, electronic torque limiting and adjustable end positions with end-position feedback
- large angles: up to 340° possible
- brushless DC motor
- modern, innovative electronics including a microcontroller with proprietary software
- quick installation thanks to ISO 5211 valve connection and interchangeable plug-in coupling
- easily accessible, switchable manual override directly on the actuator
- highly visible position indicator
- position controller
- automatic heating
- LED status indicator
- numerous additional options available
- convenient electrical connection without opening the housing via plugs to DIN standard
- flexible voltage range with automatic voltage detection
Data sheet / Information / Downloads
electric quarter-turn actuators series PSQ
- suitable for most industrial applications
- compact, robust and low-maintenance
- precise, reliable, energy-efficient
- long service life thanks to high-quality corrosion protection and IP67 (standard) or IP68 protection rating (optional)
- low weight thanks to high-quality aluminium alloys
- suitable for control and regulation applications
- torque range: from 50 to 3000 Nm
- for 90°, 180° or other angles, can even be configured for continuous rotation on request
- maintenance-free planetary differential gear
- reliable operation thanks to integrated position and torque sensing, as well as simple torque limiting in both directions – mechanically infinitely adjustable between 50 and 100% (depending on model)
- configurable via optional on-site control or USB interface (depending on model)
- incl. power failure protection
- diagnostic and monitoring function (depending on model)
- precise positioning thanks to synchronous or brake motors with no overshoot
- concealed mechanical limit stops, adjustable within a range of +/- 5 degrees
- mechanical position indicator visible from a distance
- convenient manual operation without disengaging (emergency operation)
- no need to switch from motor to manual operation – the handwheel remains stationary during motor operation but is always ready for use
- quick installation thanks to ISO 5211 valve connection and replaceable metal plug-in coupling for the valve spindle
- all standard supply voltages: single-phase, three-phase and DC
- extensive range of retrofittable accessories
electric quarter-turn actuators series J4C
- suitable for many industrial applications
- compact, robust, low-maintenance
- precise, reliable and versatile
- durable thanks to high-quality corrosion protection and an IP67 rating
- suitable for control and regulation applications
- torque range: from 20 to 300 Nm
- reliable operation thanks to integrated position and torque sensing, electronic torque limiting and adjustable end positions with end-position feedback
- large angles: up to 340° possible
- brushless DC motor
- modern, innovative electronics including a microcontroller with proprietary software
- quick installation thanks to ISO 5211 valve connection and interchangeable plug-in coupling
- easily accessible, switchable manual override directly on the actuator
- highly visible position indicator
- position controller
- automatic heating
- LED status indicator
- numerous additional options available
- convenient electrical connection without opening the housing via plugs to DIN standard
- flexible voltage range with automatic voltage detection
Data sheet / Information / Downloads
Vorteile hydraulische und elektrohydraulische Antriebe
Hohe Drehmomente
Hydraulische Antriebe ermöglichen die Übertragung hoher Drehmomente bei kompakter Bauweise und eignen sich damit besonders für große und anspruchsvolle Industriearmaturen.
Hohe Leistungsdichte
Die hydraulische Kraftübertragung ermöglicht eine hohe Leistung bei vergleichsweise kompakter Baugröße.
Präzise und zuverlässige Betätigung
Hydraulische Antriebe ermöglichen eine kontrollierte Bewegung der Armatur und können entsprechend der jeweiligen Anwendung ausgelegt werden.
Definierte Sicherheitsstellungen
Einfachwirkende Ausführungen mit Federpaket ermöglichen eine definierte Sicherheitsstellung bei Ausfall der Energieversorgung.
Robuste Konstruktion
Die Antriebe sind für industrielle Anwendungen und anspruchsvolle Betriebsbedingungen ausgelegt.
Flexible Einsatzmöglichkeiten
Unterschiedliche Baugrößen, Konstruktionsprinzipien, Drehmomentbereiche und Steuerungsvarianten ermöglichen eine Anpassung an die jeweilige Anwendung.
Hydraulisch oder elektro-hydraulisch?

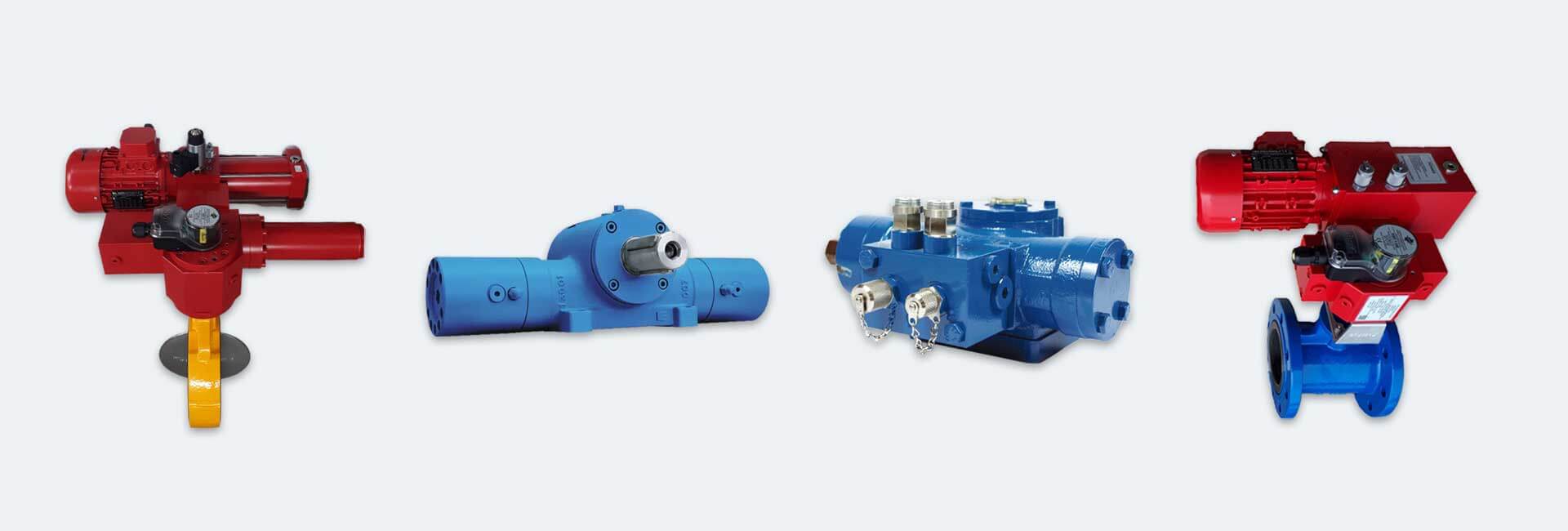

Hydraulische Antriebe
... eignen sich insbesondere dann, wenn eine zentrale Hydraulikversorgung vorhanden ist oder sehr hohe Drehmomente und Stellkräfte benötigt werden.
Elektro-hydraulische Antriebe
... bieten sich an, wenn keine zentrale Hydraulikversorgung vorhanden ist. Durch die Kombination von Elektromotor, Hydraulikeinheit und Steuerung kann eine kompakte und eigenständige Antriebslösung realisiert werden.
Welche Variante geeignet ist, hängt unter anderem von Armatur, Drehmoment, Stellzeit, Schalthäufigkeit, Energieversorgung und Sicherheitsanforderungen ab.
Auswahl des passenden Antriebs
Bei der Auswahl eines hydraulischen oder elektro-hydraulischen Antriebes sind insbesondere folgende Kriterien zu berücksichtigen:
- Armaturentyp
- Nennweite und Nenndruck
- erforderliches Drehmoment
- Losbrech-, Lauf- und Enddrehmoment
- Sicherheitszuschlag
- Schwenkwinkel
- gewünschte Stellzeit
- Schalthäufigkeit
- einfach- oder doppeltwirkende Ausführung
- gewünschte Sicherheitsstellung
- vorhandene Hydraulikversorgung
- elektrische Energieversorgung
- Umgebungstemperatur
- Umgebungsbedingungen
- Stellungsrückmeldung
- Steuerungs- und Kommunikationsanforderungen
- ggfs Explosionsschutz
Wichtig:
Die Eignung hängt immer von der konkreten Armatur und den Betriebsbedingungen ab.
Eine technische Auslegung sollte deshalb immer auf Basis der konkreten Anwendung erfolgen.
Beratung und Auslegung
Die optimale Antriebslösung hängt immer vom Zusammenspiel von Armatur, Antrieb und Betriebsbedingungen ab.
Kähler Industrie-Armaturen unterstützt Sie bei der Auswahl und technischen Auslegung des passenden hydraulischen oder elektro-hydraulischen Antriebes.
Dabei berücksichtigen wir Drehmoment, Stellzeit, Sicherheitsfunktion, Energieversorgung, Steuerung und die konkreten Einsatzbedingungen.
Von der einzelnen Armatur bis zur komplett automatisierten Lösung: Wir unterstützen Sie bei der Auswahl der passenden Antriebstechnik.
.png?ts=1771321974)
Give us a call or send us an email
Phone +49 (2174) 7848 - 0 | Email: info@kaehler-armaturen.de | Arrange a consultation
