Balancing Ball Valves / Regulating Ball Valves / Control Valves


The Vexve balancing ball valve (type Naval) is a line regulating valve with a combined shut-off and control function
and thus combines the high shut-off capabilities of a ball valve with optimum flow control.

The special features of the Vexve balancing ball valve are its precise measuring accuracy and low flow turbulence.
Thanks to the newly developed control ball with V-port, the flow is controlled even more effectively than with conventional control valves
with a consistently low resistance value and absolute tightness when closed.
Cavitation and noise are almost completely avoided.

Vexve balancing ball valves are used for shutting off and regulating mainly in heating and cooling systems.

Applications balancing ball valve

  • constructed for shutting off and regulating in heating and cooling systems
  • suitable for all non-aggressive media, such as district heating or cooling water
  • operating conditions according to data sheet

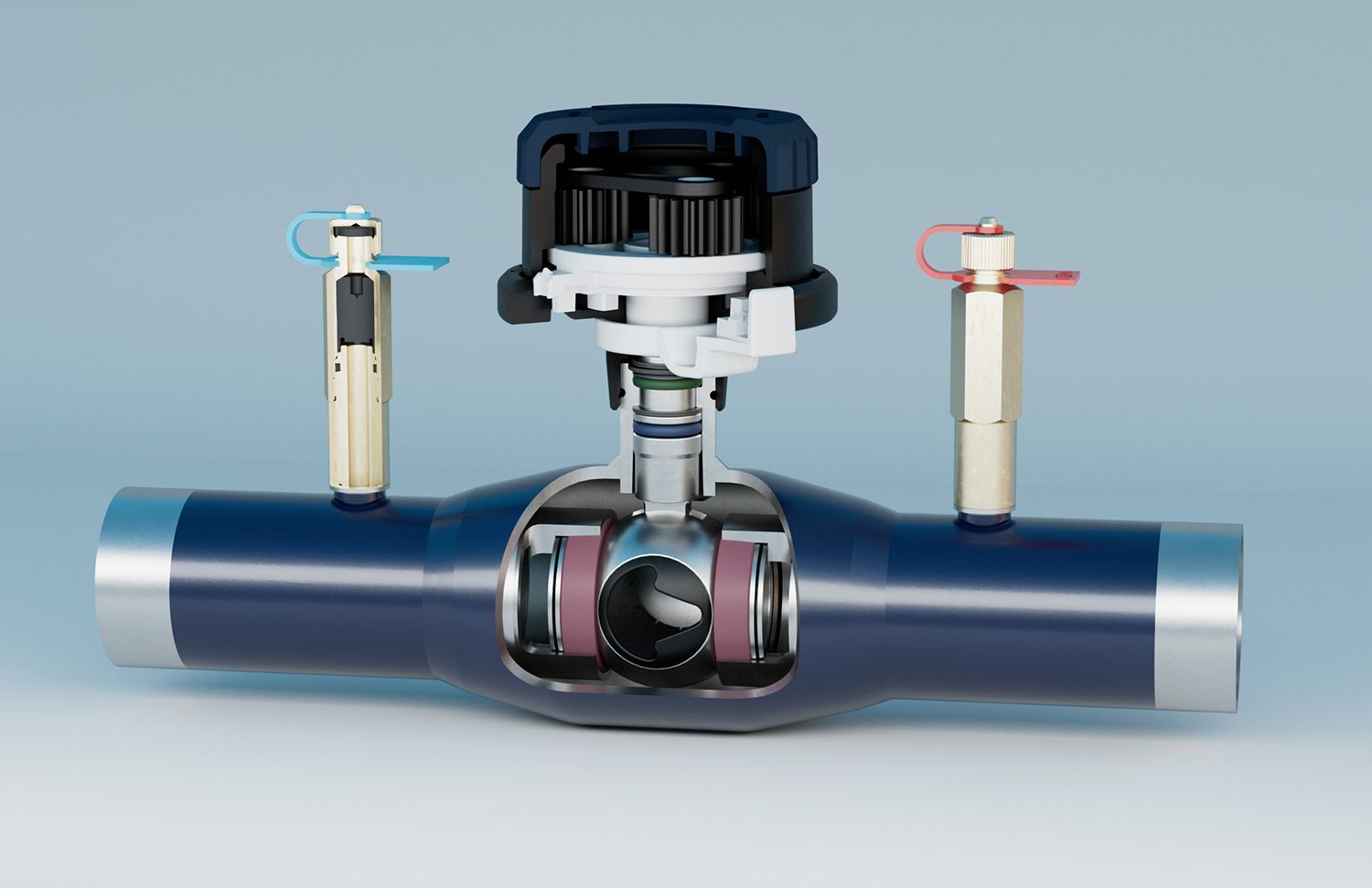

Construction balancing ball valve

  • fully welded steel or stainless steel body in a compact design
  • stainless steel floating ball with spring-loaded, glass fiber reinforced PTFE ball seals
  • ball with V-shaped opening and composite guide tube inside for optimum control characteristics
  • blow-out safe spindle made of stainless steel with triple sealing (two FPM O-rings + graphite-reinforced PTFE pressure ring)
  • self-locking brass measuring nipple (DN15-50)
  • clear adjustment scale
  • incl. operation with 90° open/close stop

Versions balancing ball valve

  • Nominal sizes:
    DN15-400 (steel version)
    DN15-250 (stainless steel version)
  • Pressure ratings:
    PN16, 25, 40
  • Connection types:
    welding end / welding end
    flange  / flange
  • Bore types:
    reduced bore
  • Operation:
    DN10-50 rotary knob
    DN65-150 removable hand lever
    DN200-400 manual gear
  • Special solutions:
    special customer-oriented solutions on request

Features balancing ball valves

Fully welded construction of high-quality materials

  • made from high-quality European materials following highest quality standards
  • high user and environmental friendliness
  • high energy efficiency
  • robust and reliable even at high pressure and high temperatures thanks to pressure vessel steel
  • compact construction
  • space-saving design
  • maintenance-free
  • long service life

Easy installation and application, good insulating properties

  • safe, quick and easy to install
  • combined shut-off and regulation function
  • excellent control properties thanks to V-shaped ball opening
  • wide and precise control range
  • low torque
  • no through rotation of ball possible thanks to the open/close stop
  • full bi-directional tightness (EN 12266-1, leakage rate A)
  • absorbs pressure shocks without damaging the structure
  • good and cost-effective insulation
  • no issues with condensation

Adjustment scale

  • clear adjustment scale with nine control points
  • control via rotary knob, removable hand lever or manual hand gear depending on the nominal diameter
  • marked, adjustable flow direction
  • shut-off possibility

This might also interest you:

Fully Welded Ball Valves
Fully Welded Ball Valves
Kähler Product Portfolio
Kähler Product Portfolio

Give us a call or send us an email
Phone +49 (2174) 7848 - 0 | Email: info@kaehler-armaturen.de | Arrange a consultation

Our products in the category „Balancing Valves“

The following products are available in our online shop. Further sizes and versions on request.

Filter products

KÄHLER Balanc. Valve FL/FL DN015 PN25 rb Steel K X
KÄHLER Balanc. Valve FL/FL DN015 PN25 rb Steel K X
Balancing ball valve X-Series flanged ends EN1092-1 fully-welded construction reduced bore Body material: Steel P235GH (1.0345) Ball material: Stainless steel X5CrNi18-10 (1.4301) Spring-loaded ball sealing made of reinforced PTFE Stem: Stainless steel X8CrNiS18-9 (1.4305) Steam sealing: FPM Type Vexve 143015X Operation conditions: acc. to Datasheet incl. precision control knop
KÄHLER Balanc. Valve FL/FL DN020 PN25 rb Steel K X
KÄHLER Balanc. Valve FL/FL DN020 PN25 rb Steel K X
Balancing ball valve X-Series flanged ends EN1092-1 fully-welded construction reduced bore Body material: Steel P235GH (1.0345) Ball material: Stainless steel X5CrNi18-10 (1.4301) Spring-loaded ball sealing made of reinforced PTFE Stem: Stainless steel X8CrNiS18-9 (1.4305) Steam sealing: FPM Type Vexve 143020X Operation conditions: acc. to Datasheet incl. precision control knop
KÄHLER Balanc. Valve FL/FL DN025 PN25 rb Steel K X
KÄHLER Balanc. Valve FL/FL DN025 PN25 rb Steel K X
KÄHLER Balanc. Valve FL/FL DN025 PN16 rb Steel K X Balancing ball valve X-Series flanged ends EN1092-1 fully-welded construction reduced bore Body material: Steel P235GH (1.0345) Ball material: Stainless steel X5CrNi18-10 (1.4301) Spring-loaded ball sealing made of reinforced PTFE Stem: Stainless steel X8CrNiS18-9 (1.4305) Steam sealing: FPM Type Vexve 143025X Operation conditions: acc. to Datasheet incl. precision control knop
KÄHLER Balanc. Valve FL/FL DN032 PN25 rb Steel K X
KÄHLER Balanc. Valve FL/FL DN032 PN25 rb Steel K X
Balancing ball valve X-Series flanged ends EN1092-1 fully-welded construction reduced bore Body material: Steel P235GH (1.0345) Ball material: Stainless steel X5CrNi18-10 (1.4301) Spring-loaded ball sealing made of reinforced PTFE Stem: Stainless steel X8CrNiS18-9 (1.4305) Steam sealing: FPM Type Vexve 143032X Operation conditions: acc. to Datasheet incl. precision control knop
KÄHLER Balanc. Valve FL/FL DN040 PN25 rb Steel K X
KÄHLER Balanc. Valve FL/FL DN040 PN25 rb Steel K X
Balancing ball valve X-Series flanged ends EN1092-1 fully-welded construction reduced bore Body material: Steel P235GH (1.0345) Ball material: Stainless steel X5CrNi18-10 (1.4301) Spring-loaded ball sealing made of reinforced PTFE Stem: Stainless steel X8CrNiS18-9 (1.4305) Steam sealing: FPM Type Vexve 143040X Operation conditions: acc. to Datasheet incl. precision control knop
KÄHLER Balanc. Valve FL/FL DN050 PN25 rb Steel K X
KÄHLER Balanc. Valve FL/FL DN050 PN25 rb Steel K X
Balancing ball valve X-Series flanged ends EN1092-1 fully-welded construction reduced bore Body material: Steel P235GH (1.0345) Ball material: Stainless steel X5CrNi18-10 (1.4301) Spring-loaded ball sealing made of reinforced PTFE Stem: Stainless steel X8CrNiS18-9 (1.4305) Steam sealing: FPM Type Vexve 143050X Operation conditions: acc. to Datasheet incl. precision control knop
KÄHLER Balanc. Valve FL/FL DN065 PN16 rb Steel K
KÄHLER Balanc. Valve FL/FL DN065 PN16 rb Steel K
Balancing ball valve flanged ends EN1092-1 fully-welded construction reduced bore Body material: Steel P235GH (1.0345) Ball material: Stainless steel X5CrNi18-10 (1.4301) Spring-loaded ball sealing made of reinforced PTFE Stem: Stainless steel X8CrNiS18-9 (1.4305) Steam sealing: FPM Type Vexve 143065 Type Naval 265510V Operation conditions: acc. to Datasheet incl. precision control knop
KÄHLER Balanc. Valve FL/FL DN065 PN25 rb Steel K
KÄHLER Balanc. Valve FL/FL DN065 PN25 rb Steel K
Balancing ball valve flanged ends EN1092-1 fully-welded construction reduced bore Body material: Steel P235GH (1.0345) Ball material: Stainless steel X5CrNi18-10 (1.4301) Spring-loaded ball sealing made of reinforced PTFE Stem: Stainless steel X8CrNiS18-9 (1.4305) Steam sealing: FPM Type Vexve 143065/25 Type Naval 265570V Operation conditions: acc. to Datasheet incl. precision control knop
KÄHLER Balanc. Valve FL/FL DN080 PN16 rb Steel K
KÄHLER Balanc. Valve FL/FL DN080 PN16 rb Steel K
Balancing ball valve flanged ends EN1092-1 fully-welded construction reduced bore Body material: Steel P235GH (1.0345) Ball material: Stainless steel X5CrNi18-10 (1.4301) Spring-loaded ball sealing made of reinforced PTFE Stem: Stainless steel X8CrNiS18-9 (1.4305) Steam sealing: FPM Type Vexve 143080 Type Naval 265511V Operation conditions: acc. to Datasheet incl. precision control knop
KÄHLER Balanc. Valve FL/FL DN080 PN25 rb Steel K
KÄHLER Balanc. Valve FL/FL DN080 PN25 rb Steel K
Balancing ball valve flanged ends EN1092-1 fully-welded construction reduced bore Body material: Steel P235GH (1.0345) Ball material: Stainless steel X5CrNi18-10 (1.4301) Spring-loaded ball sealing made of reinforced PTFE Stem: Stainless steel X8CrNiS18-9 (1.4305) Steam sealing: FPM Type Vexve 143080/25 Type Naval 265571V Operation conditions: acc. to Datasheet incl. precision control knop
KÄHLER Balanc. Valve FL/FL DN100 PN16 rb Steel K
KÄHLER Balanc. Valve FL/FL DN100 PN16 rb Steel K
Balancing ball valve flanged ends EN1092-1 fully-welded construction reduced bore Body material: Steel P235GH (1.0345) Ball material: Stainless steel X5CrNi18-10 (1.4301) Spring-loaded ball sealing made of reinforced PTFE Stem: Stainless steel X8CrNiS18-9 (1.4305) Steam sealing: FPM Type Vexve 143100 Type Naval 265512V Operation conditions: acc. to Datasheet incl. precision control knop
KÄHLER Balanc. Valve FL/FL DN100 PN25 rb Steel K
KÄHLER Balanc. Valve FL/FL DN100 PN25 rb Steel K
Balancing ball valve flanged ends EN1092-1 fully-welded construction reduced bore Body material: Steel P235GH (1.0345) Ball material: Stainless steel X5CrNi18-10 (1.4301) Spring-loaded ball sealing made of reinforced PTFE Stem: Stainless steel X8CrNiS18-9 (1.4305) Steam sealing: FPM Type Vexve 143100/25 Type Naval 265572V Operation conditions: acc. to Datasheet incl. precision control knop
KÄHLER Balanc. Valve FL/FL DN125 PN16 rb Steel K
KÄHLER Balanc. Valve FL/FL DN125 PN16 rb Steel K
Balancing ball valve flanged ends EN1092-1 fully-welded construction reduced bore Body material: Steel P235GH (1.0345) Ball material: Stainless steel X5CrNi18-10 (1.4301) Spring-loaded ball sealing made of reinforced PTFE Stem: Stainless steel X8CrNiS18-9 (1.4305) Steam sealing: FPM Type Vexve 143125 Type Naval 265513V Operation conditions: acc. to Datasheet incl. precision control knop
KÄHLER Balanc. Valve FL/FL DN125 PN25 rb Steel K
KÄHLER Balanc. Valve FL/FL DN125 PN25 rb Steel K
Balancing ball valve flanged ends EN1092-1 fully-welded construction reduced bore Body material: Steel P235GH (1.0345) Ball material: Stainless steel X5CrNi18-10 (1.4301) Spring-loaded ball sealing made of reinforced PTFE Stem: Stainless steel X8CrNiS18-9 (1.4305) Steam sealing: FPM Type Vexve 143125/25 Type Naval 265573V Operation conditions: acc. to Datasheet incl. precision control knop
KÄHLER Balanc. Valve FL/FL DN150 PN16 rb Steel K
KÄHLER Balanc. Valve FL/FL DN150 PN16 rb Steel K
Balancing ball valve flanged ends EN1092-1 fully-welded construction reduced bore Body material: Steel P235GH (1.0345) Ball material: Stainless steel X5CrNi18-10 (1.4301) Spring-loaded ball sealing made of reinforced PTFE Stem: Stainless steel X8CrNiS18-9 (1.4305) Steam sealing: FPM Type Vexve 143150 Type Naval 265514V Operation conditions: acc. to Datasheet incl. precision control knop
KÄHLER Balanc. Valve FL/FL DN150 PN25 rb Steel K
KÄHLER Balanc. Valve FL/FL DN150 PN25 rb Steel K
Balancing ball valve flanged ends EN1092-1 fully-welded construction reduced bore Body material: Steel P235GH (1.0345) Ball material: Stainless steel X5CrNi18-10 (1.4301) Spring-loaded ball sealing made of reinforced PTFE Stem: Stainless steel X8CrNiS18-9 (1.4305) Steam sealing: FPM Type Vexve 143150/25 Type Naval 265574V Operation conditions: acc. to Datasheet incl. precision control knop
KÄHLER Balanc. Valve WE/WE DN015 PN25 rb Steel K X
KÄHLER Balanc. Valve WE/WE DN015 PN25 rb Steel K X
Balancing ball valve X-Series welding ends fully-welded construction reduced bore Body material: Steel P235GH (1.0345) Ball material: Stainless steel X5CrNi18-10 (1.4301) Spring-loaded ball sealing made of reinforced PTFE Stem: Stainless steel X8CrNiS18-9 (1.4305) Steam sealing: FPM Type Vexve 140015X Operation conditions: -20°C - +120°C incl. precision control knop
KÄHLER Regelhahn SE/SE DN020 PN25 rD Stahl K X
KÄHLER Regelhahn SE/SE DN020 PN25 rD Stahl K X
Regelkugelhahn X-Serie beidseitig Schweißenden vollverschweißte Konstruktion reduzierter gerader Durchgang Gehäuse aus Stahl P235GH (1.0345) Kugel aus Edelstahl X5CrNi18-10 (1.4301) Federbelastete Kugeldichtschalen aus glasfaserverstärktes PTFE ausblassichere Spindel aus Edelstahl X8CrNiS18-9 (1.4305) Spindelabdichtung aus FPM Typ Vexve 140020X Betriebsbedingungen -20°C bis +120°C Betätigung mittels Präzisionsdrehknopf zur Durchflusssteuerung
KÄHLER Regelhahn SE/SE DN025 PN25 rD Stahl K X
KÄHLER Regelhahn SE/SE DN025 PN25 rD Stahl K X
Regelkugelhahn X-Serie beidseitig Schweißenden vollverschweißte Konstruktion reduzierter gerader Durchgang Gehäuse aus Stahl P235GH (1.0345) Kugel aus Edelstahl X5CrNi18-10 (1.4301) Federbelastete Kugeldichtschalen aus glasfaserverstärktes PTFE ausblassichere Spindel aus Edelstahl X8CrNiS18-9 (1.4305) Spindelabdichtung aus FPM Typ Vexve 140025X Betriebsbedingungen -20°C bis +120°C Betätigung mittels Präzisionsdrehknopf zur Durchflusssteuerung
KÄHLER Regelhahn SE/SE DN032 PN25 rD Stahl K X
KÄHLER Regelhahn SE/SE DN032 PN25 rD Stahl K X
Regelkugelhahn X-Serie beidseitig Schweißenden vollverschweißte Konstruktion reduzierter gerader Durchgang Gehäuse aus Stahl P235GH (1.0345) Kugel aus Edelstahl X5CrNi18-10 (1.4301) Federbelastete Kugeldichtschalen aus glasfaserverstärktes PTFE ausblassichere Spindel aus Edelstahl X8CrNiS18-9 (1.4305) Spindelabdichtung aus FPM Typ Vexve 140032X Betriebsbedingungen -20°C bis +120°C Betätigung mittels Präzisionsdrehknopf zur Durchflusssteuerung
KÄHLER Regelhahn SE/SE DN040 PN25 rD Stahl K X
KÄHLER Regelhahn SE/SE DN040 PN25 rD Stahl K X
Regelkugelhahn X-Serie beidseitig Schweißenden vollverschweißte Konstruktion reduzierter gerader Durchgang Gehäuse aus Stahl P235GH (1.0345) Kugel aus Edelstahl X5CrNi18-10 (1.4301) Federbelastete Kugeldichtschalen aus glasfaserverstärktes PTFE ausblassichere Spindel aus Edelstahl X8CrNiS18-9 (1.4305) Spindelabdichtung aus FPM Typ Vexve 140040X Betriebsbedingungen -20°C bis +120°C Betätigung mittels Präzisionsdrehknopf zur Durchflusssteuerung
KÄHLER Regelhahn SE/SE DN050 PN25 rD Stahl K X
KÄHLER Regelhahn SE/SE DN050 PN25 rD Stahl K X
Regelkugelhahn X-Serie beidseitig Schweißenden vollverschweißte Konstruktion reduzierter gerader Durchgang Gehäuse aus Stahl P235GH (1.0345) Kugel aus Edelstahl X5CrNi18-10 (1.4301) Federbelastete Kugeldichtschalen aus glasfaserverstärktes PTFE ausblassichere Spindel aus Edelstahl X8CrNiS18-9 (1.4305) Spindelabdichtung aus FPM Typ Vexve 140050X Betriebsbedingungen -20°C bis +120°C Betätigung mittels Präzisionsdrehknopf zur Durchflusssteuerung
KÄHLER Regelhahn SE/SE DN065 PN25 rD Stahl K
KÄHLER Regelhahn SE/SE DN065 PN25 rD Stahl K
Regelkugelhahn beidseitig Schweißenden vollverschweißte Konstruktion reduzierter gerader Durchgang Gehäuse aus Stahl P235GH (1.0345) Kugel aus Edelstahl X5CrNi18-10 (1.4301) Federbelastete Kugeldichtschalen aus glasfaserverstärktes PTFE ausblassichere Spindel aus Edelstahl X8CrNiS18-9 (1.4305) Spindelabdichtung aus FPM Typ Vexve 140065 Typ Naval 264410V Betriebsbedingungen -20°C bis +200°C Betätigung mittels Handhebel mit Skalierscheibe
KÄHLER Regelhahn SE/SE DN080 PN25 rD Stahl K
KÄHLER Regelhahn SE/SE DN080 PN25 rD Stahl K
Regelkugelhahn beidseitig Schweißenden vollverschweißte Konstruktion reduzierter gerader Durchgang Gehäuse aus Stahl P235GH (1.0345) Kugel aus Edelstahl X5CrNi18-10 (1.4301) Federbelastete Kugeldichtschalen aus glasfaserverstärktes PTFE ausblassichere Spindel aus Edelstahl X8CrNiS18-9 (1.4305) Spindelabdichtung aus FPM Typ Vexve 140080 Typ Naval 264411V Betriebsbedingungen -20°C bis +200°C Betätigung mittels Handhebel mit Skalierscheibe

FAQ - Häufig gestellte Fragen zu Regulierkugelhähnen



Was ist ein Regulierkugelhahn?
Ein Strangregulierventil auf Basis eines vollverschweißten Kugelhahns. Es verbindet die Absperrfunktion mit einer definierten Durchflussregelung. Die Kugel hat eine V-förmige Öffnung und im Inneren ein Leitrohr aus Komposit, was für eine gleichmäßige Regelcharakteristik sorgt. Gebräuchlich sind auch die Bezeichnungen Regelkugelhahn und Strangregulierventil.
Welche Vorteile bietet der Regulierkugelhahn?
Absperren und Einregulieren erfolgen mit einer Armatur, eine zusätzliche Absperrung entfällt. Die V-förmige Kugelöffnung erlaubt eine präzise Regelung bei geringem Widerstand, im geschlossenen Zustand ist der Hahn dicht nach EN 12266-1, Leckrate A. Die Strömungsturbulenzen sind gering, Kavitation und Geräusche werden weitgehend vermieden.
Wie wird ein Regulierkugelhahn eingestellt?
Über die Betätigung mit Einstellskala und neun Regelpunkten. Je nach Nennweite erfolgt sie per Drehknauf, Handhebel oder Handgetriebe. Die Ausführungen DN15 bis DN50 haben zusätzlich einen selbsthemmenden Messnippel aus Messing, über den sich der Volumenstrom messen lässt. Die eingestellte Durchflussrichtung ist markiert.
Welche Nennweiten und Ausführungen gibt es?
In Stahl DN15 bis DN400, in Edelstahl DN15 bis DN250, jeweils in PN16, PN25 oder PN40 mit reduziertem Durchgang. Anschlüsse sind beidseitige Schweißenden oder Flansche. Die Betätigung erfolgt bis DN50 per Drehknauf, von DN65 bis DN150 per Handhebel und ab DN200 per Handgetriebe.
Wo werden Regulierkugelhähne eingesetzt?
Zum Absperren und für den hydraulischen Abgleich in Heiz- und Kühlsystemen, also in Fernwärme- und Fernkältenetzen, bei Heizwarmwasser und Klima-Kaltwasser. Typische Einbauorte sind Stränge, Übergabestationen und Verteilungen, an denen der Volumenstrom eingestellt und später überprüft werden muss.
