Steam Ball Valves / Condensate Ball Valves

The Vexve steam ball valve (type NAVAL) has specially been constructed for the use of steam, to meet the requirements of pressure and temperature.
Steam ball valves reduce the pressure of the incoming steam and thus regulate the steam temperature.

Vexve steam ball valves can be used in a variety of process control applications, such as heating and cooling systems
and are particularly suitable for hot air, hot water and steam in both open and closed systems.

Applications steam ball valve

specially constructed for media such as hot air, hot water and steam
suitable for heating and cooling systems
operating conditions according to data sheet

Construction steam ball valve

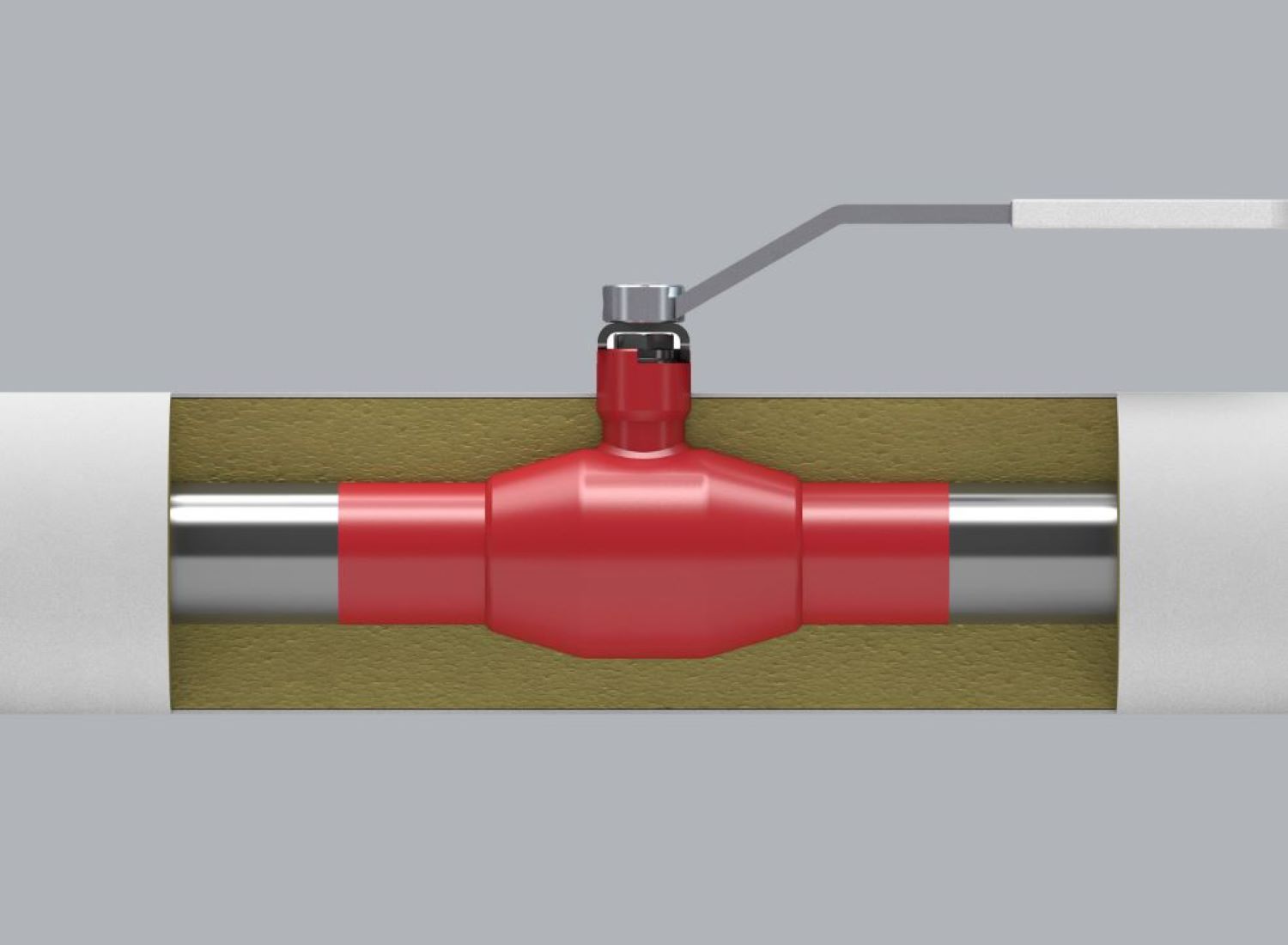

fully welded steel body in compact design

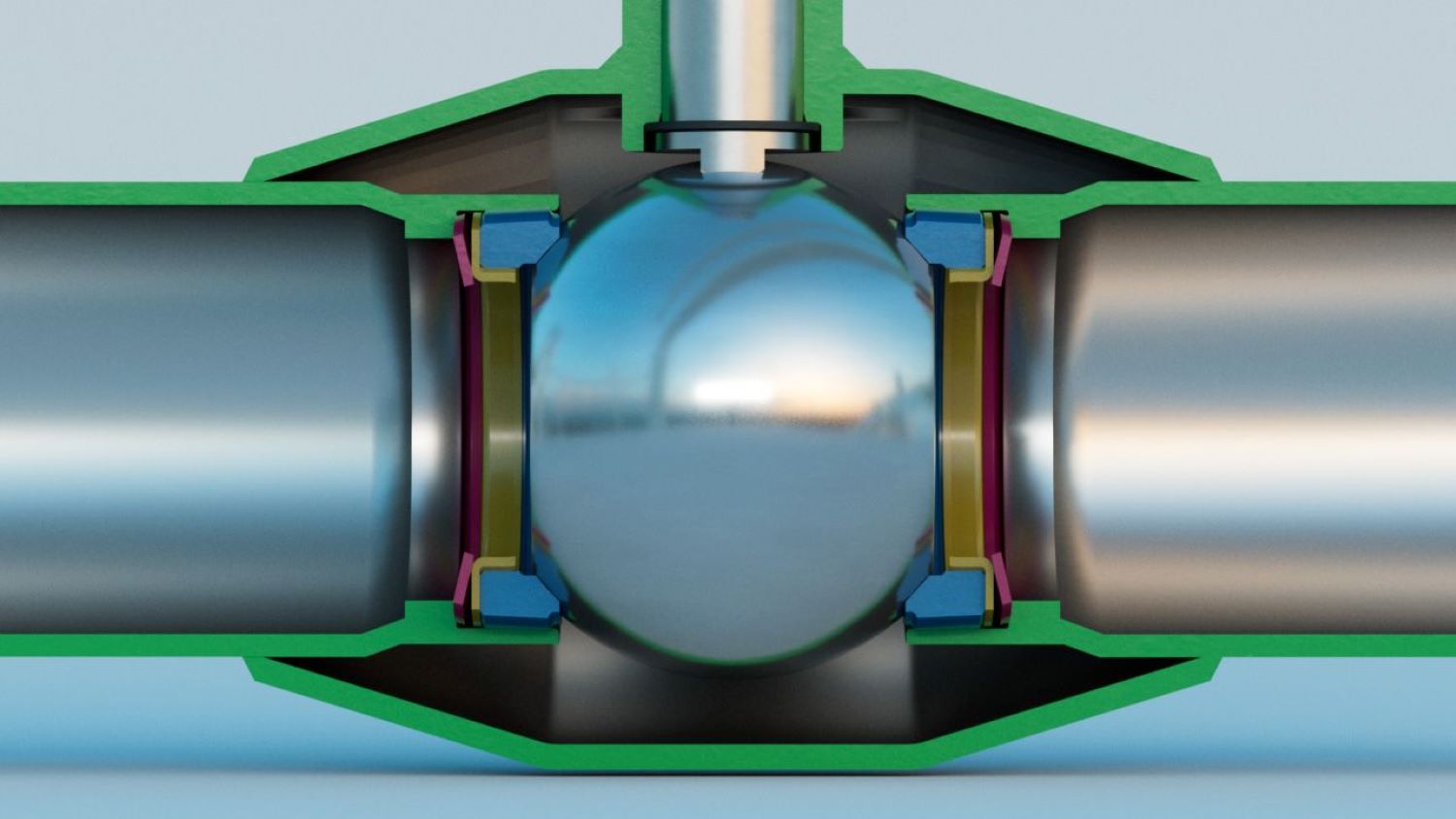

stainless steel floating ball with spring-loaded, glassfiber-reinforced PTFE ball seals
blow-out safe spindle made of stainless steel with triple sealing:
DN15-50 sealing rings (graphite)
DN65-150 O-rings (EPDM/Kalrez)
incl. hand lever or manual gear with 90° open/close stop

Versions steam ball valve

Nominal sizes:
DN15-150
Pressure ratings:
PN16, 25, 40

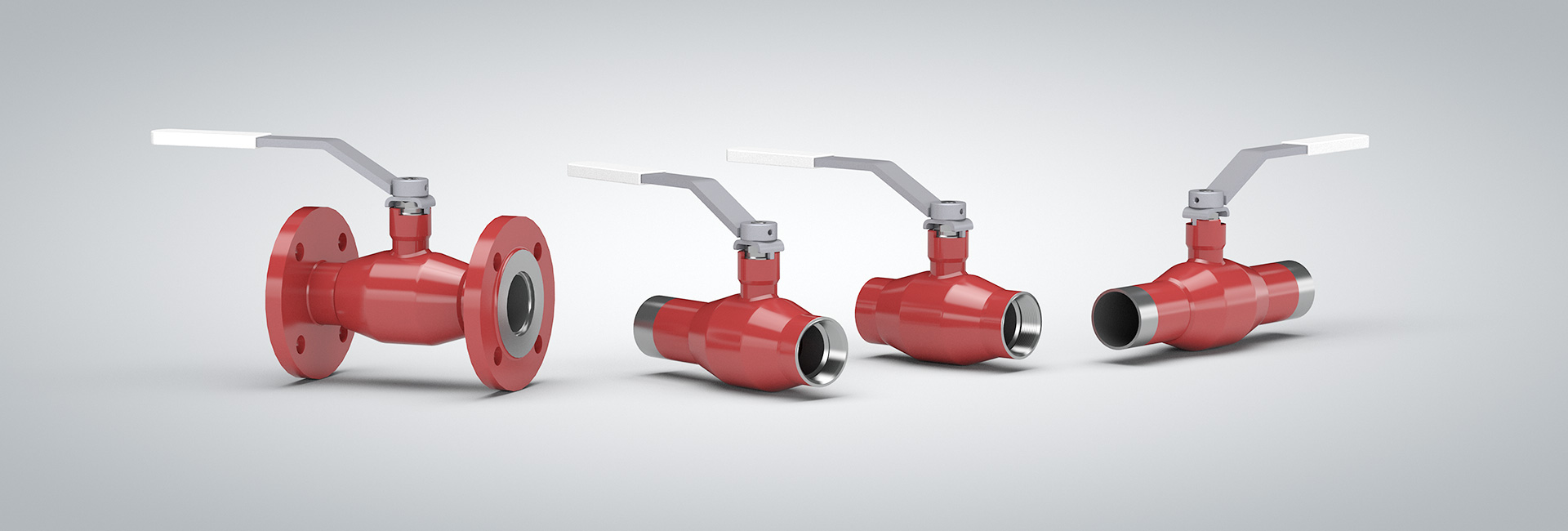

Connection types:
welding end / welding end: DN15-150
flange / flange: DN15-150
welding end / female thread: DN15-50
female thread / female thread: DN15-50
Bore types:
reduced bore
Operation:
hand lever or manual gear,
optional pneumatic, electric or hydraulic drive possible for any nominal size
Special solutions:
special customer-oriented solutions on request

Features steam ball valves

Fully welded construction of high-quality materials

made from high-quality European materials following highest quality standards
high user and environmental friendliness
high energy efficiency
robust and reliable even at high pressure and high temperatures up to 250°C thanks to pressure vessel steel
compact construction
space-saving design
maintenance-free
long service life
